Large-area surveys
950 m detection at 10% reflectivity suits larger terrain and greater standoff distance.
DJI payload
Zenmuse L3
Long-range aerial LiDAR with a 1,535 nm laser, dual-camera RGB mapping up to 100 MP and a high-precision positioning system, for Matrice 400.
Compatible with Matrice 400
950 mDetection range at 10% reflectivity, 100 kHz
100 MPRGB mapping photo size
1,535 nmLaser wavelength
3 cm / 4 cmVertical / horizontal accuracy at 120 m (lab conditions)
See long-range aerial LiDAR in action.
Explore the 1535 nm LiDAR system, dual 100 MP mapping cameras and high-accuracy geospatial workflow.
Purpose
What the Zenmuse L3 is for.
High-accuracy aerial LiDAR with a 1,535 nm laser, dual 100 MP RGB cameras and a precision positioning and orientation system.
Starting price$16,300.00Reference price
- 01
Long-range 1,535 nm LiDAR with 950 m detection at 10% reflectivity.
- 02
Dual-camera RGB mapping with photos up to 100 MP.
- 03
High-precision positioning and orientation support survey workflows.
- 04
Built for Matrice 400 with the L3 single gimbal connector.
Compatibility
Matrice 400 with the Zenmuse L3 single-gimbal connector and confirmed firmware

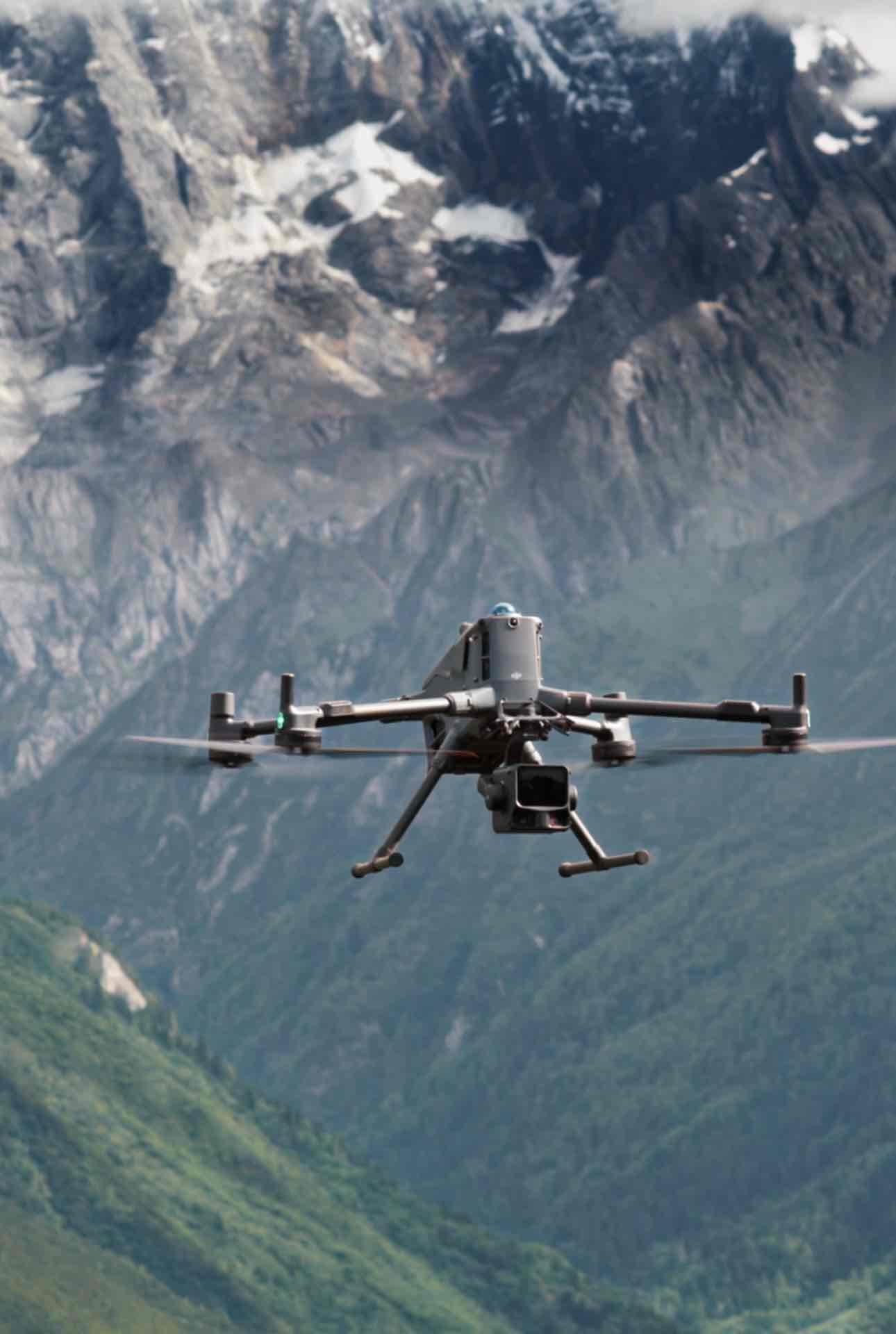

Aircraft shown for context. Aircraft sold separately.
Compare models
Choose the model for your work.
Compare the capabilities that matter to your workflow.
| Feature | Zenmuse L3 | Zenmuse L2 |
|---|---|---|
| Detection range | 950 m at 10% reflectivity (100 kHz) | 250 m at 10% reflectivity (100 klx) |
| RGB mapping camera | 4/3 CMOS, up to 100 MP photos | 4/3 CMOS, 20 MP |
| Aircraft | Matrice 400 with L3 single gimbal connector | Matrice 400, Matrice 350 RTK, Matrice 300 RTK (RC Plus) |
| Weight | 1.60 kg plus 145 g connector | 905 +/- 5 g |
Figures from the published L3 and L2 specifications, each measured under stated conditions.
Product gallery
See the Zenmuse L3 in detail.
Included items
What is included.
Reference items for this product.
Zenmuse L310 reference item typesZenmuse L3
- Zenmuse L3× 1
- Zenmuse L3 Lens Cap× 1
- CFexpress Type B Memory Card (1 TB)× 2
- CFexpress Type B Card Reader× 1
Ten item types, including two 1 TB CFexpress Type B cards (brand may vary), a card reader, the Matrice 400 carrying-case insert and the L3 single gimbal connector. The Matrice 400 aircraft, controller, batteries and RTK station are not included. MIRS confirms the exact SKU before order.
Manufacturer reference options
Confirm the exact reference with MIRS.
These manufacturer references help identify a package or licence. Your current MIRS product offer and checkout choices remain unchanged.
Selected reference
Zenmuse L3 Worry-Free Plus Combo
10 physical item types in this reference package.
Package availability, compatibility and regional fulfilment are confirmed in your quotation.
Where it fits
Built into the field workflow.
Geospatial data capture
Point cloud, RGB texture and POS data are captured together for mapping and 3D reconstruction in DJI Terra.
Infrastructure and terrain
Accuracy of 3 cm vertical and 4 cm horizontal at 120 m flight altitude in lab testing supports engineering-grade surveys when GNSS and processing are controlled.
Essential information
Technical details
Long-range LiDAR
- Laser wavelength
- 1,535 nm
- Range
- Up to 950 m at 10% reflectivity (DJI tests)
- RGB mapping
- Dual 100 MP cameras
- Positioning
- Integrated high-precision POS
Works with
MIRS product support
Plan your Zenmuse L3 setup with MIRS.
Confirm compatibility, availability and regional requirements with our team before ordering.
Need a specific answer?
Frequently asked questions
How does L3 differ from L2?
L3 uses a 1,535 nm laser with 950 m detection at 10% reflectivity and RGB photos up to 100 MP. L2 detects 250 m at 10% reflectivity and has a 20 MP camera. L3 is supported on Matrice 400 only.
Which aircraft and connector does L3 need?
DJI Matrice 400 with the Zenmuse L3 single gimbal connector. The Worry-Free Plus Combo includes the connector; the aircraft is separate.
Is 950 m detection guaranteed in every scene?
No. It is measured at 10% reflectivity and 100 kHz under stated test conditions. Target and environment change the result.
What is in the package?
The L3, lens cap, two 1 TB CFexpress cards, card reader, storage case, cleaning cloth, M400 case insert, single gimbal connector, screws and tools, and a four-piece gimbal damper set.
