Asset inspection
34x hybrid optical zoom and 3-3,000 m laser ranging support standoff inspection of tall structures and lines.
DJI payload

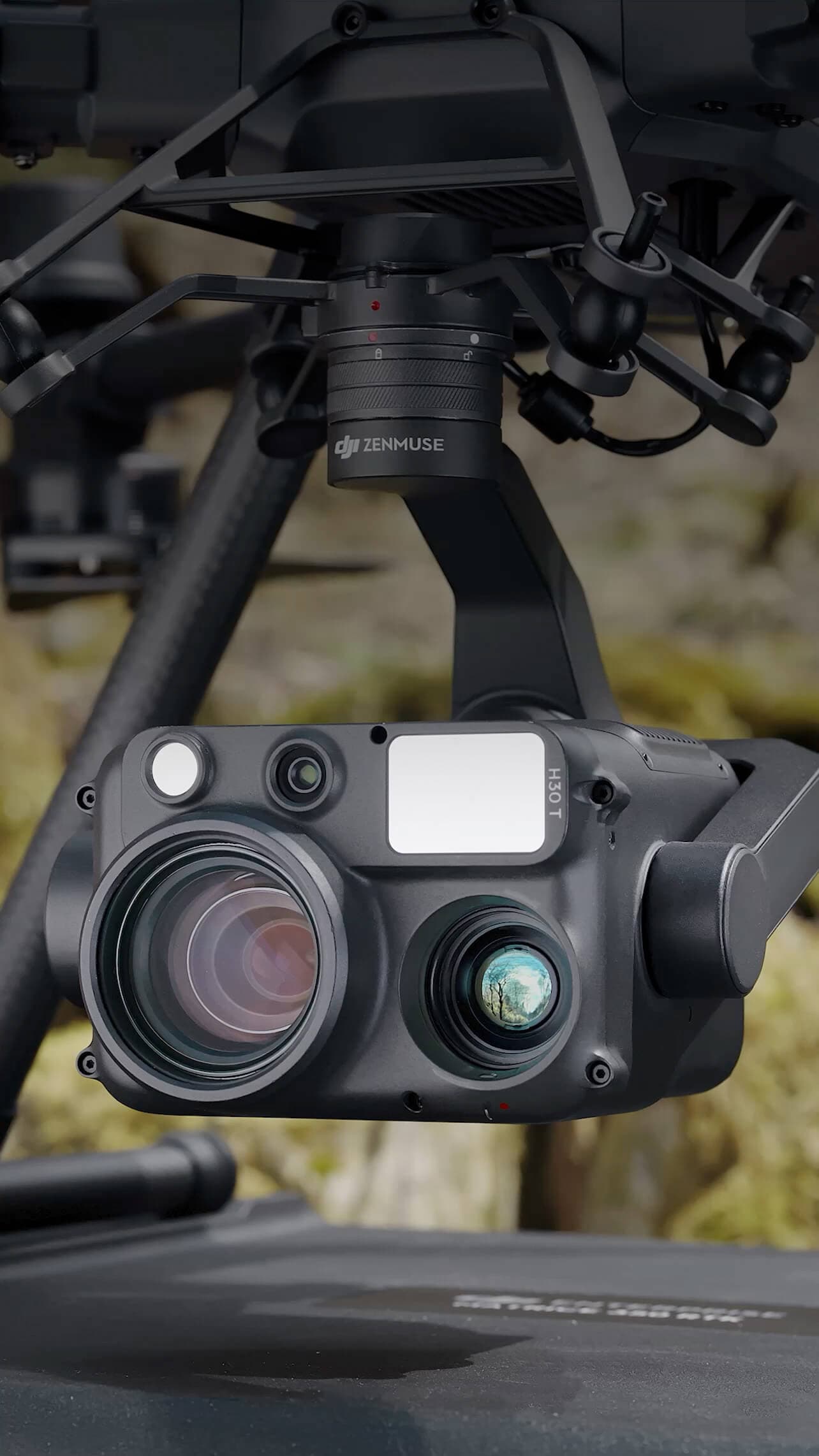

Zenmuse H30 Series
An all-weather multi-sensor payload with wide, zoom, laser-ranging and NIR illumination modules. H30T adds an infrared thermal camera.
Compatible with Matrice 400, 350 RTK, 300 RTK
34xHybrid optical zoom (400x maximum zoom)
3-3,000 mLaser rangefinder measuring range
1,280 x 1,024H30T thermal resolution
IP54Protection rating
See the H30 Series across day and night missions.
Explore the multi-sensor payload's zoom, wide-angle, thermal, laser ranging and NIR capabilities.
Choose your setup
Match the setup to the mission.
All-weather multi-sensor payload series with wide and zoom cameras, laser ranging and NIR illumination; H30T also adds thermal imaging.
Priced configuration$4,200.00Zenmuse H30 Worry-Free Basic Combo. Other configurations: price on request.
Zenmuse H30 Worry-Free Basic ComboLong-range visible inspection and laser ranging.- Wide, zoom, laser rangefinder and NIR auxiliary light
- No thermal camera
- Zenmuse H30TThe same payload when thermal imaging is required.
- Adds a 1,280 x 1,024 uncooled VOx thermal camera
- Temperature measurement and alerts supported
Compatibility
Matrice 400, Matrice 350 RTK or Matrice 300 RTK; the M300 RTK requires DJI RC Plus and confirmed firmware
Compare models
Choose the model for your work.
Compare the capabilities that matter to your workflow.
| Feature | Zenmuse H30 | Zenmuse H30T |
|---|---|---|
| Zoom camera | 40 MP, 1/1.8-inch CMOS, 34x hybrid optical | 40 MP, 1/1.8-inch CMOS, 34x hybrid optical |
| Wide camera | 48 MP, 1/1.3-inch CMOS | 48 MP, 1/1.3-inch CMOS |
| Thermal camera | Not included | 1,280 x 1,024, 24 mm lens (52 mm equivalent) |
| Power | 26 W | 28 W |
Figures from the published Zenmuse H30 Series specifications; series weight is 920 +/- 5 g.
Product gallery
See the Zenmuse H30 Series in detail.
Included items
What is included.
The package list follows the selected option.
Zenmuse H30 Worry-Free Basic Combo5 reference item typesZenmuse H30 Worry-Free Basic Combo
- Zenmuse H30× 1
- Lens Cap× 1
- microSD Card (64GB)× 1
- Storage Case× 1
Five item types for each selected payload: the payload, lens cap, 64 GB microSD card, storage case and lens cleaning cloth. Service coverage is separate from the box contents, and MIRS confirms the final regional contents before order. The aircraft and controller are sold separately.
Manufacturer reference options
Confirm the exact reference with MIRS.
These manufacturer references help identify a package or licence. Your current MIRS product offer and checkout choices remain unchanged.
Selected reference
Zenmuse H30 Worry-Free Basic Combo
5 physical item types in this reference package.
Package availability, compatibility and regional fulfilment are confirmed in your quotation.
Where it fits
Built into the field workflow.
Public safety
H30T thermal imaging and the NIR auxiliary light support searches in poor visibility.
Night operations
Night Scene mode and Zenmuse S1 beam alignment on Matrice 400 support low-light work.
Essential information
Technical details
Series imaging
- Zoom camera
- 40 MP; up to 34× optical zoom
- Wide camera
- 48 MP
- Laser rangefinder
- 3–3,000 m
- Thermal camera
- 1,280 × 1,024 (H30T only)
Choose a model
- H30
- Wide, zoom, ranging and NIR illumination
- H30T
- Adds infrared thermal imaging
MIRS product support
Plan your Zenmuse H30 Series setup with MIRS.
Confirm compatibility, availability and regional requirements with our team before ordering.
Need a specific answer?
Frequently asked questions
Is thermal imaging included with H30?
No. Thermal imaging is part of H30T, with a 1,280 x 1,024 infrared camera. H30 has wide, zoom, laser and NIR modules.
Which aircraft carry the H30 Series?
The Matrice 400, Matrice 350 RTK and Matrice 300 RTK are supported; the M300 RTK requires DJI RC Plus. The aircraft is separate.
Can I rely on the full 3,000 m laser range?
No. 3-3,000 m is the measuring range. Typical ranges are lower on common targets (2,000 m for grassland and 1,700 m for road surfaces), and rain, fog and target shape reduce it.
What is the ingress protection rating?
IP54 under controlled laboratory conditions. The rating is not permanent and can decrease with wear.
Zenmuse H30 Series
Ready to choose your setup?
Select the option, confirm the reference package and set the quantity.
