Manifold 3

Name: Manifold 3
Brand: DJI

A compact onboard computer that adds up to 100 TOPS of processing to a supported aircraft, so your team can run its own applications next to the flight and payload data.

Compatible with Matrice 400, Matrice 4 Series and Matrice 4D Series

Choose setup Technical details

Up to 100 TOPSAI computing performance in stated test conditions

120 ± 5 gWeight of the unit

16 GB · 256 GBLPDDR5 memory and solid-state storage

IP55Ingress protection under controlled conditions

Overview

What the Manifold 3 is for.

Add compact onboard AI computing to supported DJI enterprise aircraft with Manifold 3 and its Payload SDK development environment.

Starting pricePrice on requestConfiguration and availability confirmed by MIRS

01
Delivers up to 100 TOPS of onboard AI computing power.
02
Combines 16 GB LPDDR5 memory with 256 GB of solid-state storage.
03
Uses the E-Port V2 interface on Matrice 400, supporting ports E1, E2 and E3, with E3 recommended.
04
Provides a USB-C interface at USB 3.2 Gen 1 speeds, up to 5 Gbps.
05
Weighs 120 ± 5 g with an IP55 rating under controlled conditions and works from -20° to 50° C.

Compatibility

Matrice 400, Matrice 4 Series or Matrice 4D Series with a supported mounting and interface setup. Firmware, SDK version and mounting hardware are confirmed per aircraft before quotation.

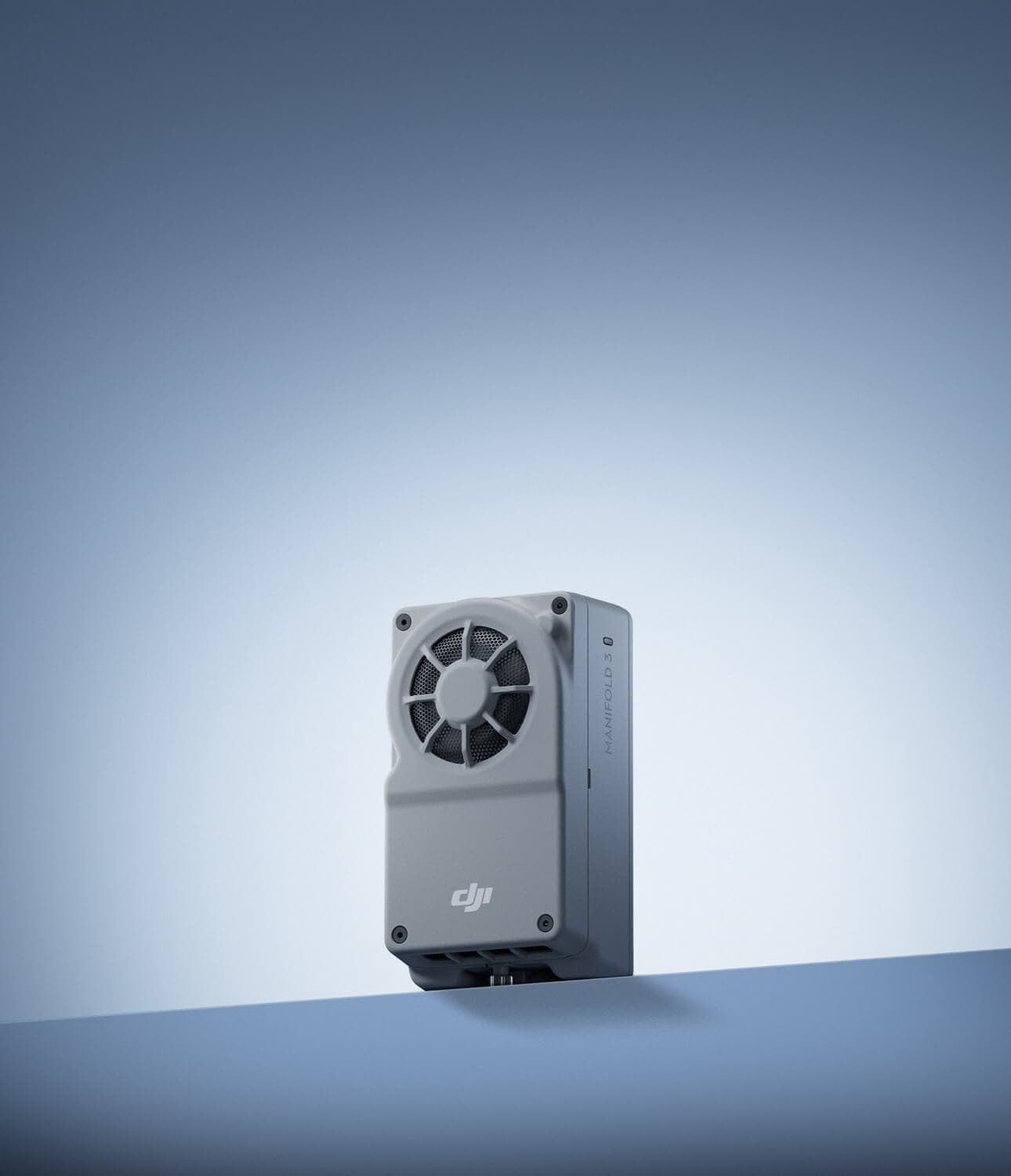

Manifold 3 compute unit with active cooling airflow.

Included items

Unit-only package reference

Reference items for this product.

Manifold 3

1 reference item typeManifold 3

Manifold 3× 1

Unit-only package reference. An aircraft-specific accessory kit is required for use and is separate; MIRS confirms the regional contents and installation setup.

Choose setup

Manufacturer reference options

Confirm the exact reference with MIRS.

These manufacturer references help identify a package or licence. Your current MIRS product offer and checkout choices remain unchanged.

Selected reference

Manifold 3

1 physical item type in this reference package.

Package availability, compatibility and regional fulfilment are confirmed in your quotation.

Ask about this reference

Workflow

Where it fits your workflow.

Onboard AI processing

Run detection or analysis models on the aircraft instead of sending all data to the ground.

Custom payload and sensor workflows

Build applications that use aircraft, sensor and payload data through the Payload SDK.

Research and prototyping

Develop and test edge applications on a supported enterprise aircraft.

Essential information

Technical details

Compute platform

AI performance: Up to 100 TOPS
Memory: 16 GB LPDDR5
Storage: 256 GB SSD
Rated power: 33 W

Physical and environmental

Dimensions: 98 × 57 × 36 mm
Weight: 120 ± 5 g
Ingress protection: IP55, controlled conditions
Operating temperature: -20° to 50° C

Integration

Supported aircraft: Matrice 400, Matrice 4 Series, Matrice 4D Series
Matrice 400 interface: E-Port V2: E1, E2 or E3; E3 recommended
USB-C: USB 3.2 Gen 1, up to 5 Gbps

MIRS product support

Plan your Manifold 3 setup with MIRS.

Confirm compatibility, availability and regional requirements with our team before ordering.

Choose your setupConfirm the package and quantity →Ask MIRSGet product guidance and a tailored quotation →

Need a specific answer?

Frequently asked questions

Which aircraft does it work with?

Matrice 400, Matrice 4 Series and Matrice 4D Series. Mounting and ports differ by aircraft and must be confirmed for your setup.

Which port is used on the Matrice 400?

It supports the E1, E2 and E3 ports of the E-Port V2, with E3 recommended. Other aircraft use a USB-C connection at USB 3.2 Gen 1 speeds.

Do I need development skills?

Yes for custom applications. It is a development platform that uses the Payload SDK. MIRS confirms the SDK version, firmware and platform support for your project.

What is included in the box?

Box contents, brackets and cables are not confirmed here. MIRS confirms what is supplied for your aircraft in the quotation.

What does the unit-only package include?

The reference package contains one Manifold 3 unit. The aircraft-specific accessory kit is separate and is needed for installation and operation; MIRS confirms the appropriate kit for your aircraft.
