D-RTK 3 Multifunctional Station

Name: D-RTK 3 Multifunctional Station
Brand: DJI

A multifunctional RTK station that works as a base station for centimetre-level corrections, a relay station that extends aircraft signal range, or a handheld rover for surveying control points.

Compatible with Matrice 400, Matrice 4 and 4D series; relay mode needs 5 GHz

Choose setup Technical details

3 modesBase, relay and rover workflows; support varies by aircraft and region

IP67Protection rating in a controlled environment

1.26 kgMultifunctional station weight

Up to 7 h / 4 h / 10 hBase / relay / rover operating time under test conditions

Product film

See the D-RTK 3 first-use workflow.

See the first-use workflow for the D-RTK 3 station before confirming your intended configuration.

External video is off. Allow external media in Cookie settings, then choose play.

Overview

What the D-RTK 3 Multifunctional Station is for.

A DJI multifunctional positioning station for compatible base, relay and rover workflows.

Starting pricePrice on requestConfiguration and availability confirmed by MIRS

01
Base, relay and rover modes in one IP67 station.
02
Tracks five global satellite systems for centimetre-level positioning.
03
Rover mode works with the DJI Enterprise app and exports control points to DJI Terra.
04
Supports raw observation recording for local PPK with Matrice 4E data in Terra V4.4.0 or later.

Compatibility

Compatible DJI aircraft and workflows, including Matrice 400, Matrice 4 series and Matrice 4D series, with regional frequency, range and firmware limits. Relay mode needs 5 GHz support; MIRS confirms the fit before quotation.

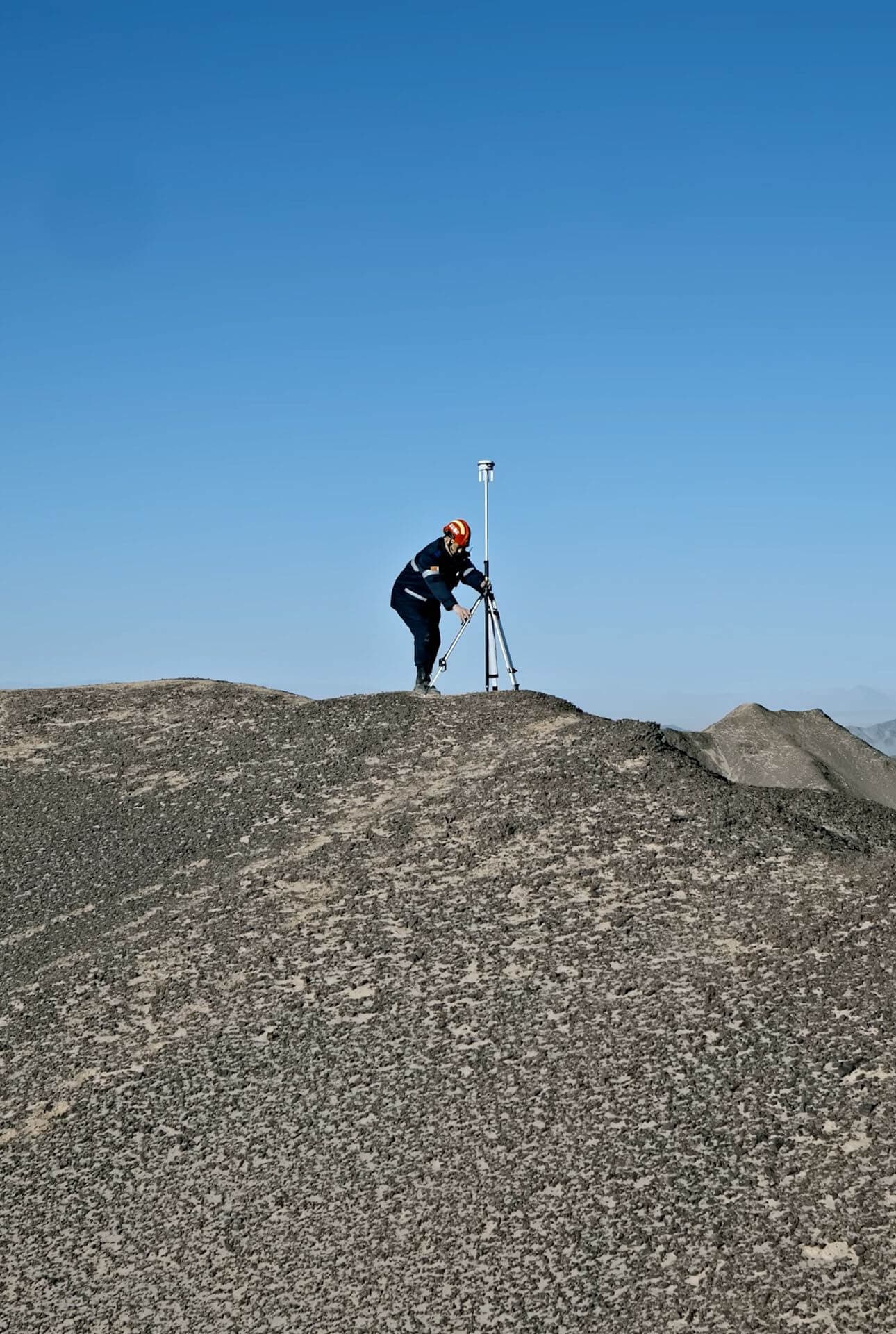

D-RTK 3 at a survey site. The pictured pole and tripod are separate accessories.

Included items

What is included.

Reference items for this product.

D-RTK 3 Multifunctional Station

3 reference item typesD-RTK 3 Multifunctional Station

D-RTK 3 Multifunctional Station× 1
Spare OcuSync Directional Antennas× 4
USB-A to USB-C Cable× 1

Station package: the multifunctional station, four spare directional antennas and one USB-A to USB-C cable. Survey pole and tripod are separate accessories.

Choose setup

Manufacturer reference options

Confirm the exact reference with MIRS.

These manufacturer references help identify a package or licence. Your current MIRS product offer and checkout choices remain unchanged.

Selected reference

D-RTK 3 Multifunctional Station

3 physical item types in this reference package.

Package availability, compatibility and regional fulfilment are confirmed in your quotation.

Ask about this reference

Where it fits

Built into the field workflow.

Base station for flights

Provide centimetre-level corrections to several compatible aircraft at once from a tripod.

Relay at difficult sites

Place the station high to keep the link to the aircraft in cities, valleys and obstructed dock sites.

Control-point surveying

Use rover mode with a survey pole and the DJI Enterprise app to capture control points for mapping.

Essential information

Technical details

Station

Modes: Base, relay and rover; support varies by aircraft and region
Protection: IP67 in a controlled environment
Weight: 1.26 kg
Operating time: Up to 7 h base, 4 h relay and 10 h rover under test conditions
Satellite systems: Five global systems

Workflow

Relay mode: Needs 5 GHz support and a surveyed, unobstructed high point; unavailable in some countries
Rover: Works with a survey pole and the DJI Enterprise app; exports control points to DJI Terra
PPK: Raw observation recording for local PPK with Matrice 4E data in Terra V4.4.0 or later
Accessories: Survey pole and tripod are separate items
