Night operations
Starlight sensors in the zoom and wide cameras give low-light colour imagery without active illumination.
DJI payload

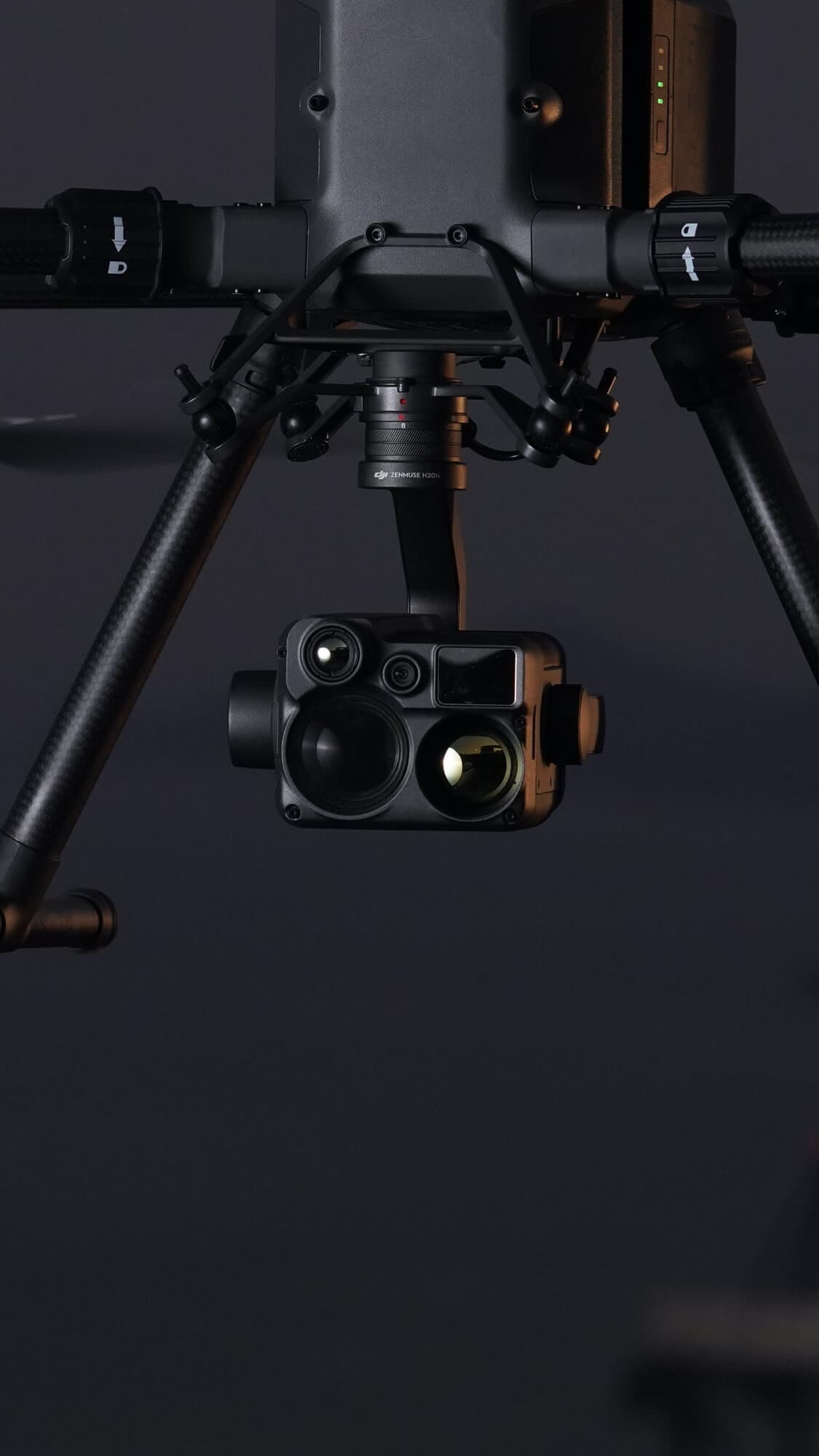

Zenmuse H20N
A night-vision hybrid payload that pairs starlight visible cameras with two thermal cameras and a laser rangefinder for low-light missions.
Compatible with Matrice 350 RTK, Matrice 300 RTK
20xHybrid optical zoom, visible camera
2 thermal640 x 512 cameras with wide and tele lenses
3-1,200 mLaser rangefinder measuring range
IP44Protection rating
See the H20N work beyond daylight.
Explore its starlight cameras, dual thermal imaging and laser rangefinder for night operations.
Purpose
What the Zenmuse H20N is for.
Night-vision hybrid payload combining starlight wide and zoom cameras, dual thermal cameras and laser ranging.
Starting pricePrice on requestConfiguration and availability confirmed by MIRS
- 01
Starlight sensors in the wide and zoom cameras support low-light visual awareness.
- 02
Two 640 x 512 thermal cameras with wide and tele lenses.
- 03
The visible camera has 20x hybrid optical zoom.
- 04
A laser rangefinder measures from 3 m to 1,200 m.
Compatibility
Matrice 350 RTK and Matrice 300 RTK. Not supported on Matrice 400 or the integrated-camera Matrice 30.
Aircraft shown for context. Aircraft sold separately.
Product gallery
See the Zenmuse H20N in detail.
Included items
What is included.
Reference items for this product.
Zenmuse H20N4 reference item typesZenmuse H20N
- Gimbal and Camera× 1
- microSD Card (32 GB)× 1
- Storage Case× 1
- Lens Cleaning Cloth× 1
The package contains the gimbal and camera, a 32 GB microSD card, a storage case and a lens cleaning cloth; the Worry-Free Basic and Plus combos list the same four items. No aircraft, controller or battery is included. H20N is supported on Matrice 300 RTK and Matrice 350 RTK, not on Matrice 400 or Matrice 30.
Where it fits
Built into the field workflow.
Public safety
A wide thermal lens (45.5 deg DFOV) and a tele thermal lens (12.5 deg DFOV) support search and situational awareness after dark.
Asset inspection
Radiometric thermal imagery and laser ranging support after-hours checks of energised or hot equipment.
Essential information
Technical details
Night-operation imaging
- Wide and zoom
- Starlight night-vision sensors
- Dual thermal
- 640 × 512; 2× and 8× optical zoom
- Visual zoom
- 20× hybrid optical zoom
- Laser rangefinder
- Up to 1,200 m
Works with
MIRS product support
Plan your Zenmuse H20N setup with MIRS.
Confirm compatibility, availability and regional requirements with our team before ordering.
Need a specific answer?
Frequently asked questions
How does H20N differ from H20T?
H20N uses starlight visible sensors (4 MP zoom, 2 MP wide) and two thermal cameras. H20T has 20 MP zoom and 12 MP wide cameras with one thermal camera.
Which aircraft support H20N?
H20N is supported on Matrice 300 RTK and Matrice 350 RTK. It is not supported on Matrice 400.
What zoom does the visible camera have?
The visible camera has 20x hybrid optical zoom and up to 128x digital zoom; the thermal camera supports up to 32x hybrid zoom.
Does night vision guarantee visibility?
No. Visibility depends on the scene, weather, range and settings. Review the specifications against the mission.
