Asset inspection
The 20 MP zoom camera reaches 23x hybrid optical zoom for detail from a safe standoff distance.
DJI payload

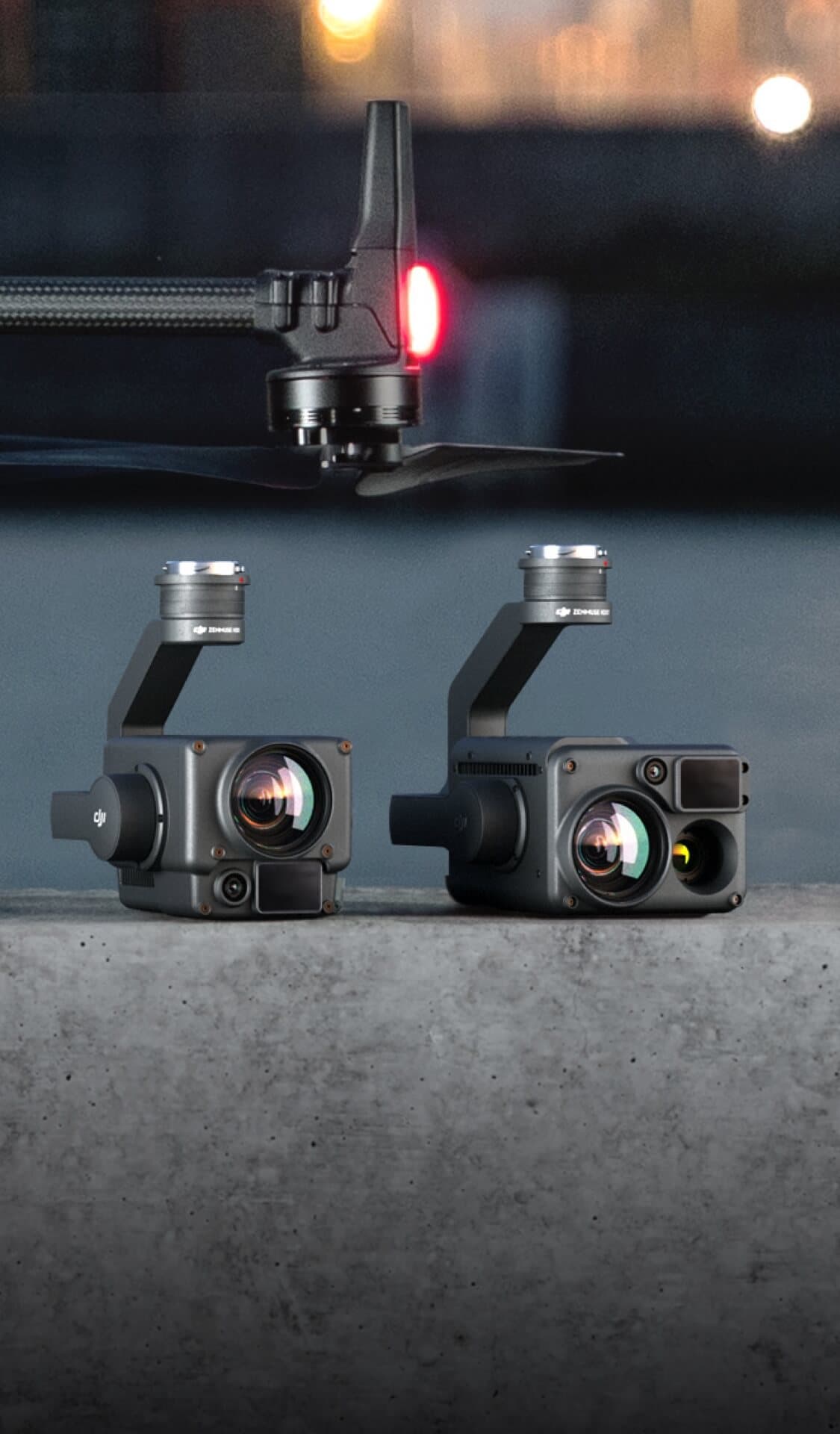

Zenmuse H20 Series
Hybrid wide, zoom and laser-ranging payloads for daylight inspection, with a radiometric thermal camera on the H20T.
Compatible with Matrice 350 RTK, Matrice 300 RTK
20 MPZoom camera, 1/1.7-inch CMOS
23xHybrid optical zoom
12 MPWide camera, 1/2.3-inch CMOS
IP44Protection rating
Explore the H20 hybrid sensor payload.
See how wide, zoom, thermal and laser rangefinding sensors support aerial inspection missions.
Choose your setup
Match the setup to the mission.
Hybrid wide, zoom and laser-ranging payloads for enterprise inspection, with radiometric thermal imaging on H20T.
Starting pricePrice on requestConfiguration and availability confirmed by MIRS
Zenmuse H20Daylight inspection with wide, zoom and laser ranging.- 678 g; wide, zoom and laser rangefinder
- No thermal camera
Zenmuse H20TInspection that also needs temperature measurement.- 828 g; adds a 640 x 512 radiometric thermal camera
- 13.5 mm thermal lens (58 mm equivalent), 1x-8x digital zoom
Compatibility
Matrice 350 RTK and Matrice 300 RTK. Not supported on Matrice 400 or the integrated-camera Matrice 30.
Compare models
Choose the model for your work.
Compare the capabilities that matter to your workflow.
| Feature | Zenmuse H20 | Zenmuse H20T |
|---|---|---|
| Zoom camera | 20 MP, 23x hybrid optical zoom | 20 MP, 23x hybrid optical zoom |
| Wide camera | 12 MP | 12 MP |
| Thermal camera | Not included | 640 x 512, 12 um pitch |
| Weight | 678 +/- 5 g | 828 +/- 5 g |
Figures from the published Zenmuse H20 Series specifications.
Product gallery
See the Zenmuse H20 Series in detail.
Included items
What is included.
The package list follows the selected option.
Zenmuse H204 reference item typesZenmuse H20
- Gimbal and Camera× 1
- SanDisk Extreme microSD Card 32GB× 1
- Storage Case× 1
- Lens Cleaning Cloth× 1
Each option is a single-payload package: the gimbal and camera, a 32 GB SanDisk Extreme microSD card, a storage case and a lens cleaning cloth. The Worry-Free Plus combo lists the same four items. No aircraft, controller or battery is included. The H20 Series is supported on Matrice 300 RTK and Matrice 350 RTK, not on Matrice 400 or Matrice 30.
Where it fits
Built into the field workflow.
Public safety
H20T adds radiometric thermal imaging to the wide and zoom views for heat-aware searches.
Emergency response
Night Scene mode is supported on the zoom camera for low-light visual awareness.
Essential information
Technical details
Hybrid imaging
- Wide camera
- 12 MP
- Zoom camera
- 20 MP; 23× hybrid optical zoom
- Thermal camera
- 640 × 512 radiometric (H20T only)
- Laser rangefinder
- Up to 1,200 m
Choose a model
- H20
- Wide, zoom and laser rangefinder
- H20T
- Wide, zoom, thermal and laser rangefinder
Works with
MIRS product support
Plan your Zenmuse H20 Series setup with MIRS.
Confirm compatibility, availability and regional requirements with our team before ordering.
Need a specific answer?
Frequently asked questions
What is the difference between H20 and H20T?
Both combine a 12 MP wide camera, a 20 MP zoom camera and a laser rangefinder. H20T adds a 640 x 512 radiometric thermal camera and weighs 828 g against 678 g.
Which aircraft support the H20 Series?
The H20 Series is supported on Matrice 300 RTK and Matrice 350 RTK. It is not supported on Matrice 400, which uses the L3, H30, H30T, L2 and P1 payloads, and it does not fit the Matrice 30, which has an integrated camera.
Does the package include an aircraft?
No. The package is the payload, a 32 GB microSD card, a storage case and a lens cleaning cloth.
What is the ingress protection rating?
IP44, lower than the IP54 of the newer H30 Series and L2, so plan weather limits accordingly.
